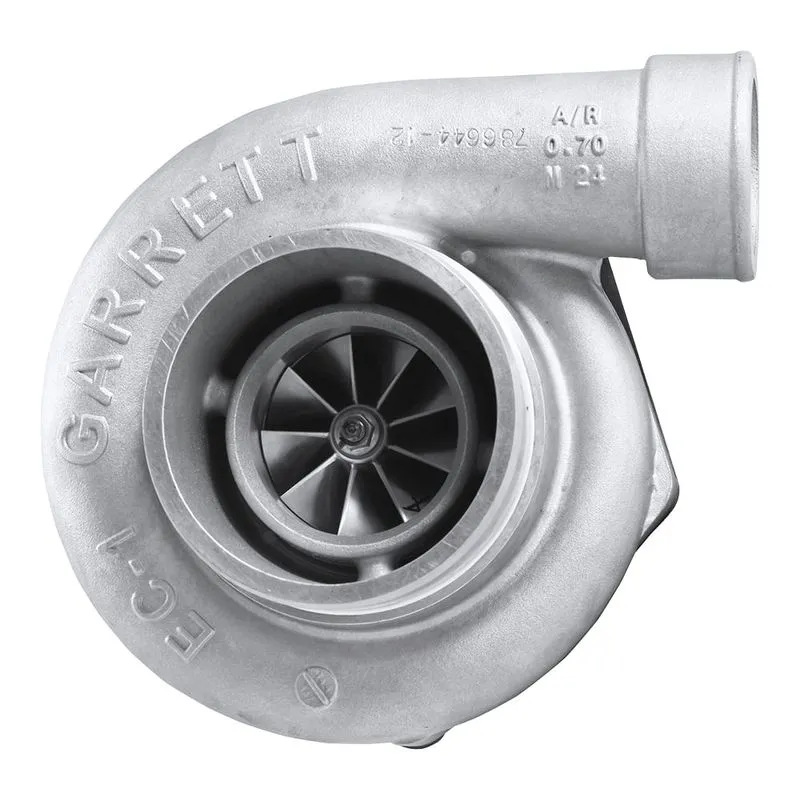

GTW Series Turbochargers Were Engineered To Provide Budget-Minded Enthusiasts With A High-Performing Mid Frame Product That Is Offered In Ball Bearing And Journal Bearing Options. GTW Combines Popular Compressor Inducer Sizes Like 58MM | 62MM | 64MM | 67MM With Slightly Larger (Than GTX) Turbine Wheel Sizes.
Key Features
- Ported Shroud Design For Surge Resistance
- 58MM Turbocharger Compressor Incuder
- Journal Bearing Rotating Group
- Forged Fully-Machined Billet Compressor Wheel
- Lightweight Aluminum Backplate
- Inconel Super-Alloy Turbine Wheel
Maximum Allowable Turbocharger Speed
130KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner’s Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.
Performance Results Of This Product Are Highly Dependent Upon Your Vehicle’s Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.
Product Specifications
Engine Characteristics
| Specification | Value |
|---|---|
| Minimum HP | 450 |
| Maximum HP | 700 |
| Minimum Displacement (L) | 2.0 |
| Maximum Displacement (L) | 4.5 |
Important Product Information
Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways.
Compressor Wheel Specifications
| Specification | Value |
|---|---|
| Compressor Exducer (mm) | 76 |
| Compressor Wheel Material | Forged Fully Machined |
| Compressor A/R | 0.70 |

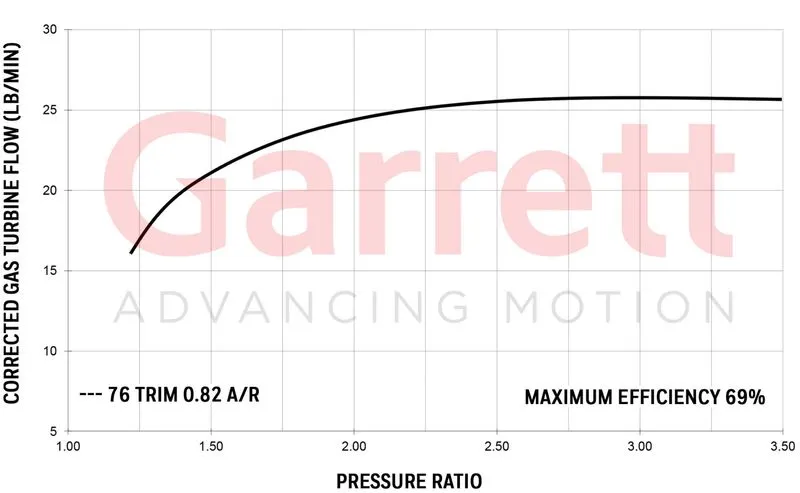

Turbine Wheel Specifications
| Specification | Value |
|---|---|
| Turbine Inducer (mm) | 65 |
| Turbine Exducer (mm) | 57 |
| Turbine Trim | 76 |
| Turbine Wheel Material | Inconel |
Turbocharger Details
| Specification | Value |
|---|---|
| Product Line | GTW |
| Frame Size | 34 |
| Rotation | Standard |
| Cooling | Oil & Water Cooled |
| Wastegate | External |
| Bearing Type | Journal Bearing |
