Garrett GT Series Is The Name That Pioneered Turbo Technology, Boosting Drag Racing And Road Racing Teams To Break Hundreds Of World Records. The GT Series Lineup Is Offered In Both Journal And Ball Bearing Options, With Sizes Ranging From GT2052 To GT3582. Cast Compressor Wheels Feature Original GT Series Aerodynamics And Provide Maximum Durability And Longevity.
Key Features
- Original GT Series Aerodynamics
- 60MM Turbocharger Compressor Incuder
- Supercore with 480009-0009 Actuator Assy
- High Efficiency Ceramic Ball Bearing Cartridge
Maximum Allowable Turbocharger Speed143.971KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner’s Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.

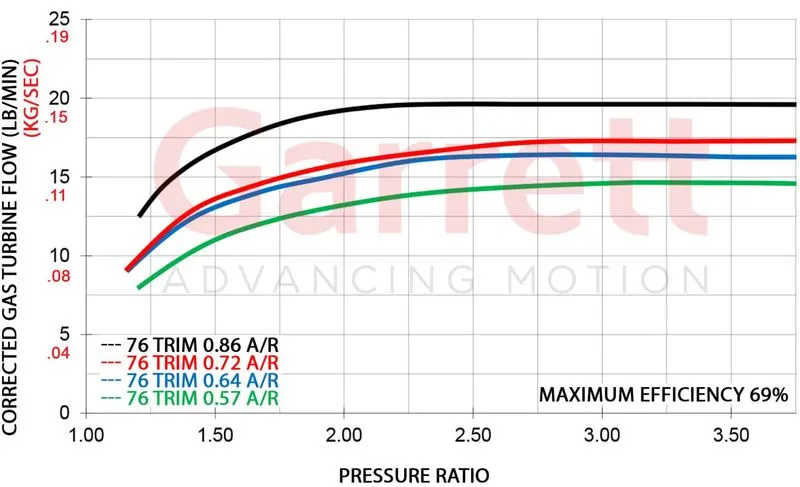

Performance Results Of This Product Are Highly Dependent Upon Your Vehicle’s Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.
Product Specifications
Engine Characteristics
Min HP 250
Max HP 360
Min Displacement (L) 1.8
Max Displacement (L) 3.0
Important Product Information
Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performanc
Compressor Wheel Specs
Compressor Exducer (mm) 60
Compressor Wheel Mat Cast
Compressor A/R 0.60
Turbine Wheel Specs
Turbine Inducer (mm) 54
Turbine Exducer (mm) ! 47
Turbine Trim 76
Turbine Wheel Mat Inconel
Turbochargers
Product Line GT
Frame Size ! 28
Rotation Standard
Cooling Oil & Water Cooled
Wastegate External
Bearing Ceramic Dual Ball Bearing
