Deutsch Industrial Solid Contacts / Terminals

Description

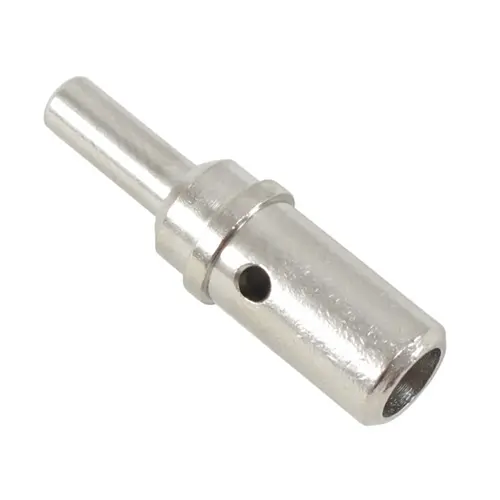

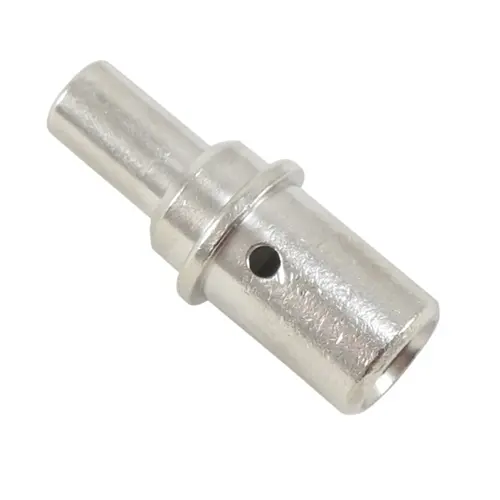

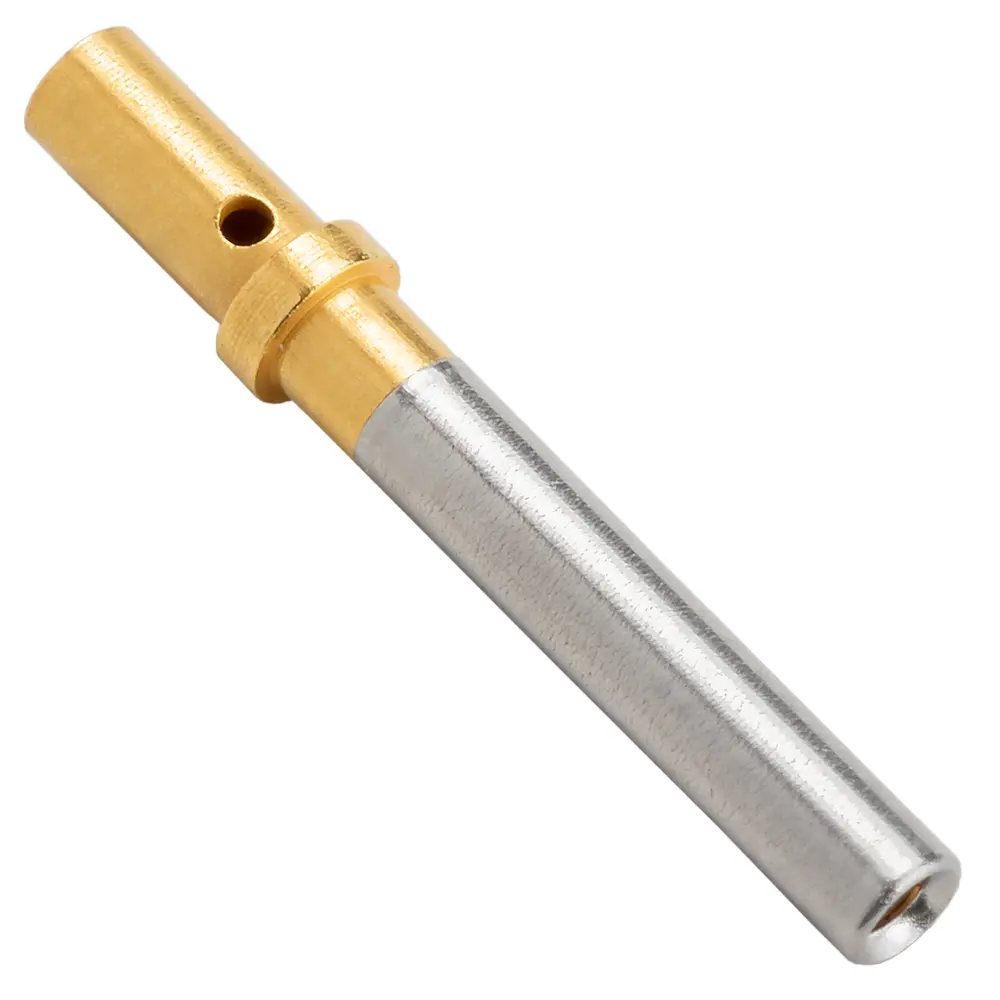

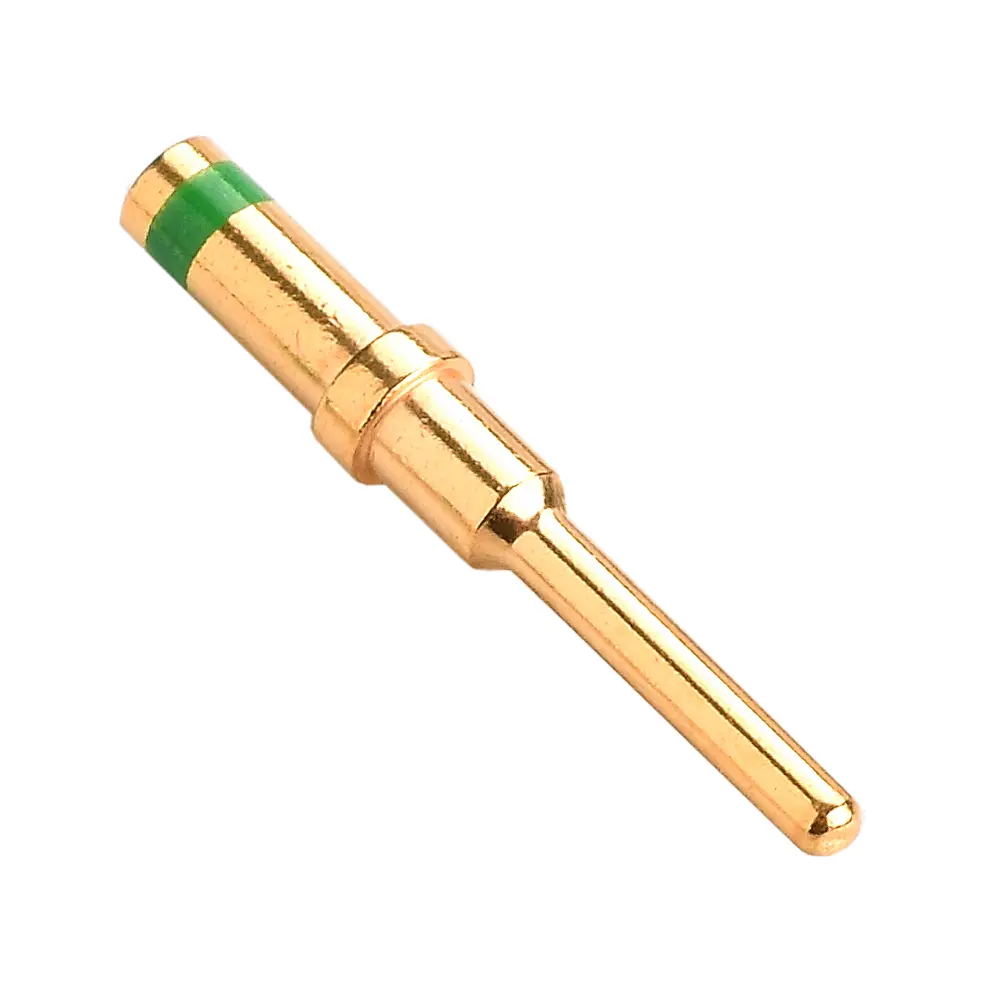

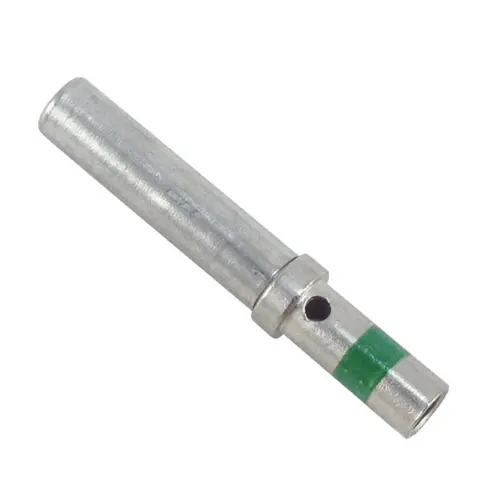

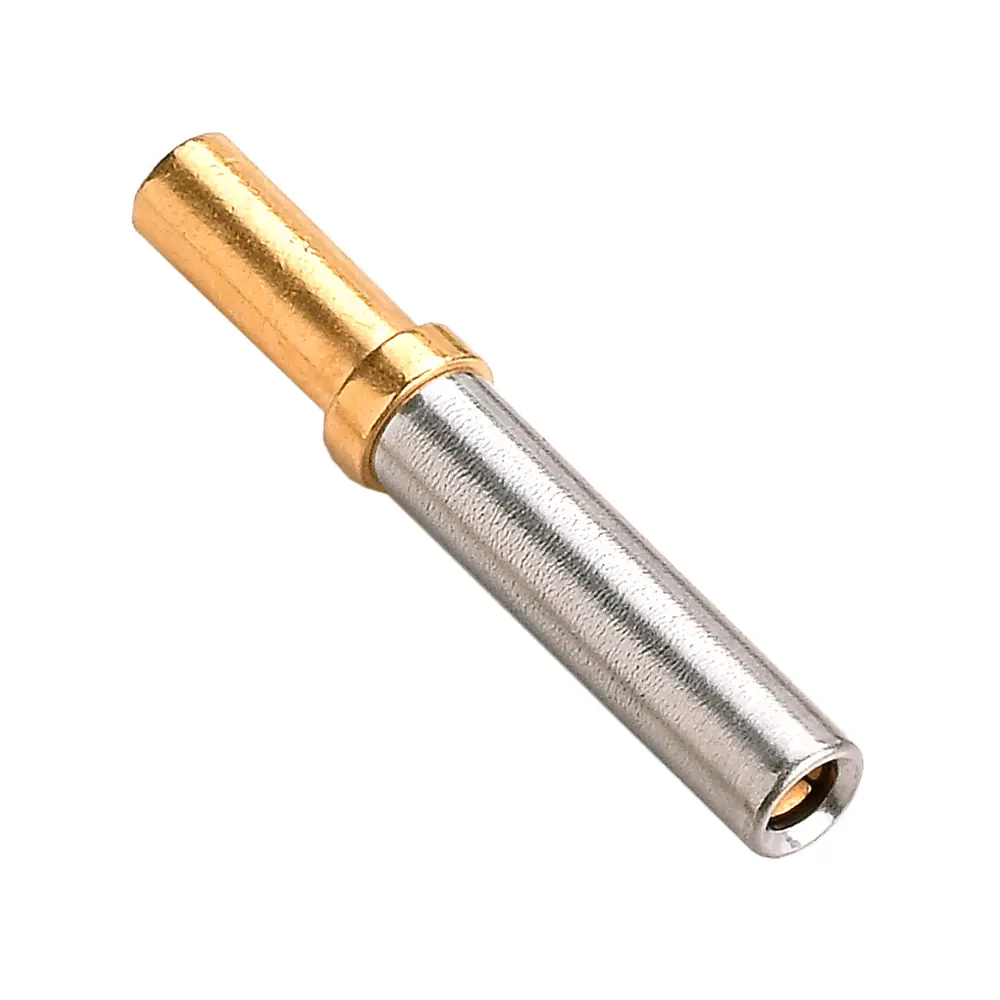

Deutsch Industrial Solid Contacts / Terminals Deutsch offers two styles of contacts, stamped & formed and solid. Both contact types use a crimp style termination, eliminating the need for solder. All Deutsch Industrial terminals protect the split socket tines. The only variations in the Deutsch Common Contact System are those dictated by wire gauge and contact style. Below you find an assortment of Deutsch industrial series solid contacts / terminals, stocked in both Nickel and gold plated variants where available. If you would like to dig deeper into the Deutsch Common Contact System please Click Here for specifically selected pages from the Deutsch Industrial catalog. Series Contact Size Wire Range AWG Max Amps* OE Crimp Tool Econo Crimp Tool DT 16 20-14 13 HDT-48-00 18880 DTM 20 22-16 7.5 HDT-48-00 18890 DTP 12 14-10 25 HDT-48-00 18860 DTHD 12 14-10 25 HDT-48-00 18860 DTHD 8 10-8 60 N/A 18870 DTHD 4 6 100 N/A 18870 * Max amperage rating is per contact.
