Garrett GT2560R Turbocharger 836023-5003S

arrett GT Series Is The Name That Pioneered Turbo Technology, Boosting Drag Racing And Road Racing Teams To Break Hundreds Of World Records. The GT Series Lineup Is Offered In Both Journal And Ball Bearing Options, With Sizes Ranging From GT2052 To GT3582. Cast Compressor Wheels Feature Original GT Series Aerodynamics And Provide Maximum Durability And Longevity.

Key Features

• Original GT Series Aerodynamics
• 46MM Turbocharger Compressor Incuder
• Internally Wastegated Turbine Housing
• Sold As A Complete Turbo (Includes Turbine Kit & Actuator)
• High Efficiency Ceramic Ball Bearing Cartridge

Maximum Allowable Turbocharger Speed

144.864KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner’s Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.

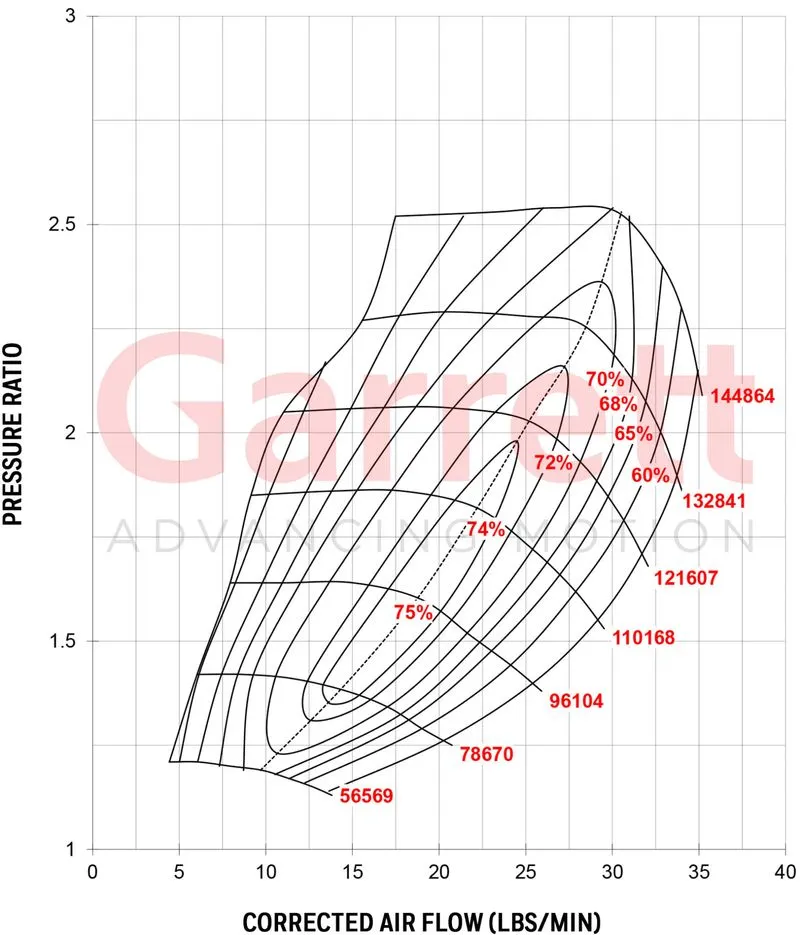

Performance Results Of This Product Are Highly Dependent Upon Your Vehicle’s Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.

Product Specifications

Engine Characteristics

Important Product Information

Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways.

Compressor Wheel Specifications

Turbine Wheel Specifications

Turbocharger Details
