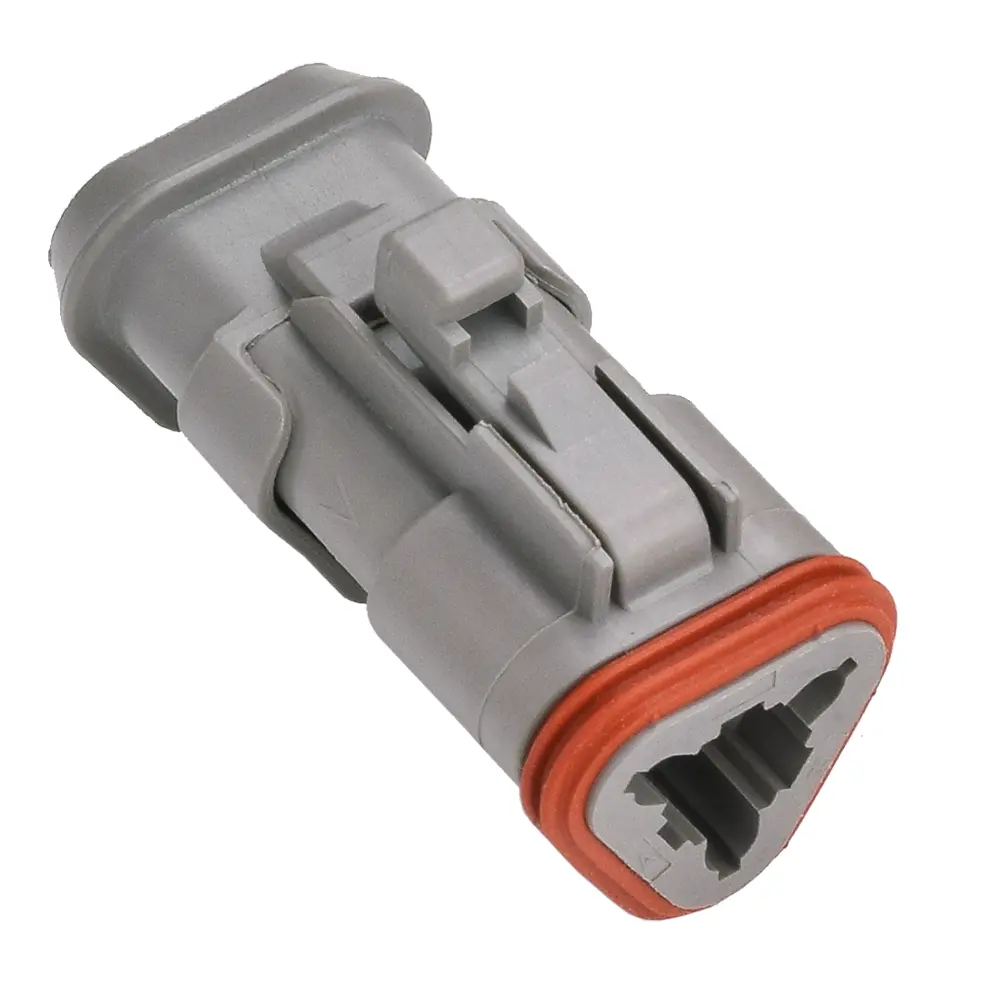

DT06-3S-E008

Deutsch DT 3-Way Plug (Dt06) — With Xcap (Cross-Cap Closure) for Motorsport Wiring

The DT06-3S-E008 is a 3-way Deutsch DT series plug (DT06) connector housing for motorsport and automotive wiring applications. This variant is the with XCAP (cross-cap closure) version: cross-cap closure that covers the mating face when the connector is unmated, providing environmental protection for the contact face and preventing accidental contact with exposed contacts during service. The DT plug (DT06) mates with the corresponding DT04 receptacle to form a complete IP67-rated sealed circular connector assembly suited to three-wire sensor connections (Hall-effect cam/crank sensors, throttle position sensors), Bosch MAP sensor interfaces, 3-circuit actuator connections, and compact motorsport circuit groups requiring 3-way DT connectivity.

Deutsch DT Series — The Motorsport Connector Standard

Deutsch DT connectors are the most widely used motorsport connector format outside of mil-spec circular connectors, providing IP67 environmental sealing (when correctly assembled with wedgelock), vibration resistance, a wide operating temperature range of −55°C to +125°C, and availability across 2-way through 12-way circuit counts. The DT series uses size 16 contacts and requires a wedge lock to achieve its sealing and contact retention rating — the wedge lock must be fully seated for the connector to meet its specification.

3-Way Circuit Count — Applications

The 3-way DT connector is suited to three-wire sensor connections (Hall-effect cam/crank sensors, throttle position sensors), Bosch MAP sensor interfaces, 3-circuit actuator connections, and compact motorsport circuit groups requiring 3-way DT connectivity. The DT format’s combination of compact size, IP67 sealing, and positive-locking wedge makes it the correct connector for any motorsport circuit interface that may be exposed to moisture, vibration, and the extreme temperature range of a motorsport vehicle.

DT04 vs DT06 — Receptacle and Plug Roles

The DT04 is the receptacle connector body: it receives the contact tabs and mates from the front. The DT06 is the plug connector body: it carries the wire-side contacts and is inserted into the DT04 during mating. In standard motorsport harness practice, the DT04 receptacle is wired to the chassis or vehicle side, and the DT06 plug is wired to the device or sub-harness end. This convention means the chassis-side contacts are recessed within the DT04 body, providing mechanical protection when the harness plug is disconnected during service.

Available from Arctic Performance Parts

Arctic Performance Parts stocks Deutsch DT individual components — housings, wedge locks, and contacts — in 2-way, 3-way, and 4-way circuit counts, in grey and black, with standard and specialist configurations including flanged, shrink boot, XCAP, busbar, and CAN termination variants. Supporting professional motorsport harness builders across Norway, Sweden, and Denmark. Lead time 1–2 weeks for quantities beyond current stock.
