Bosch BR540 in-tank fuel pump kit
281$ Ink VAT
E85 safe in-tank fuel pump. 540 LPH. Including pre-filter and cable.
Available on backorder
Description
Bosch BR540
| Petrol horsepower | ≈ 1200 HP @ 60 PSI / 4.14 BAR (EFI engines) |
| E85 horsepower | ≈ 800 HP @ 60 PSI / 4.14 BAR (EFI engines) |
| Flow rate | 540 LPH |
| Safe for ethanol | • YES |
| Fuel pump setup | In-tank fuel pump |
| Fuel pump diameter | 46mm (1.81″) |
| Outlet diameter | ≈ 10mm (to be used with ID10 mounting kit) |

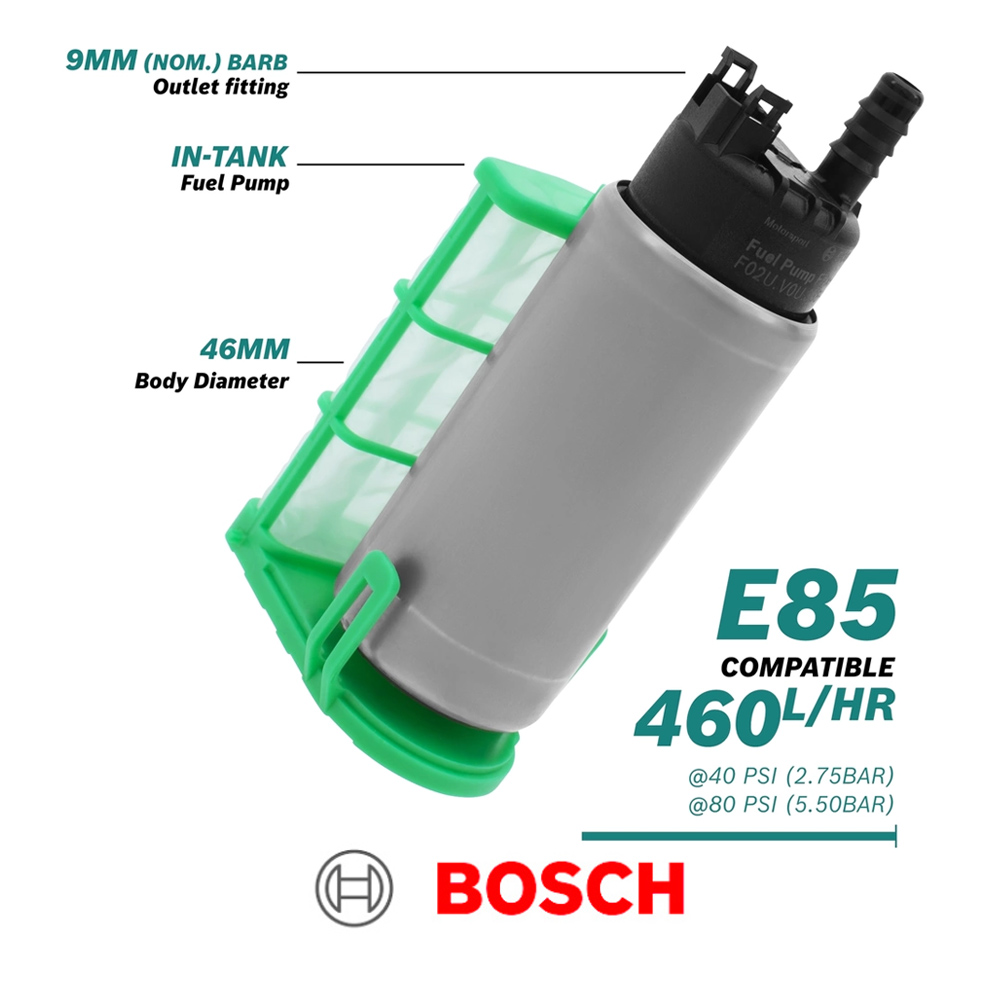

BOSCH BR540 High-flow in-tank motorsports fuel pump
Released exclusively by Bosch Motorsport, the BR540 is the highest-flowing in-tank fuel pump ever offered by Bosch. Manufactured in Germany with motorsport-grade precision, it delivers exceptional performance for high-demand applications.
Flows up to 540 LPH (free flow), 460LPH @ 40PSI (2.75BAR), Current draw : ~16A @ 40 PSI, ~19A @ 80 PSI, ~24A @ 145 PSI.

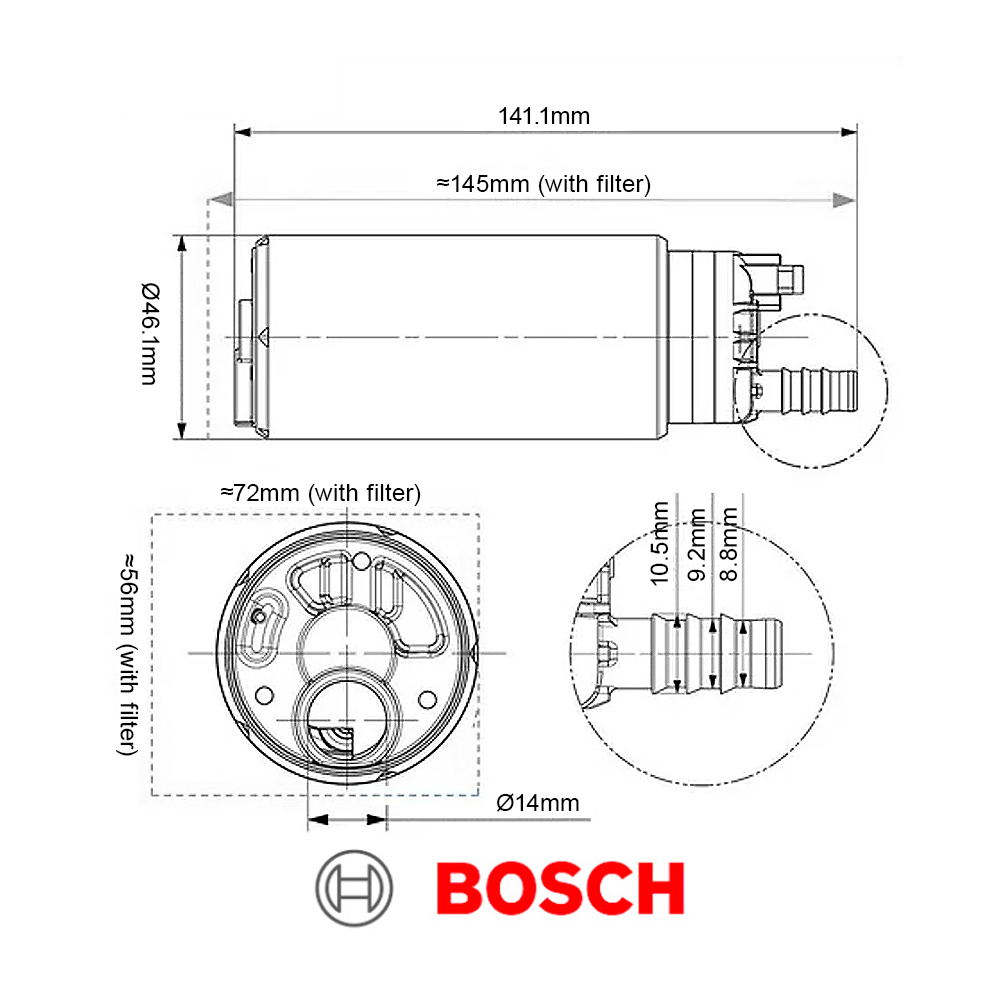

Lightweight 550g design with compact 46mm diameter body that suits both Nuke Performance CFC Unit and fuel surge tanks without additional brackets or adapters.

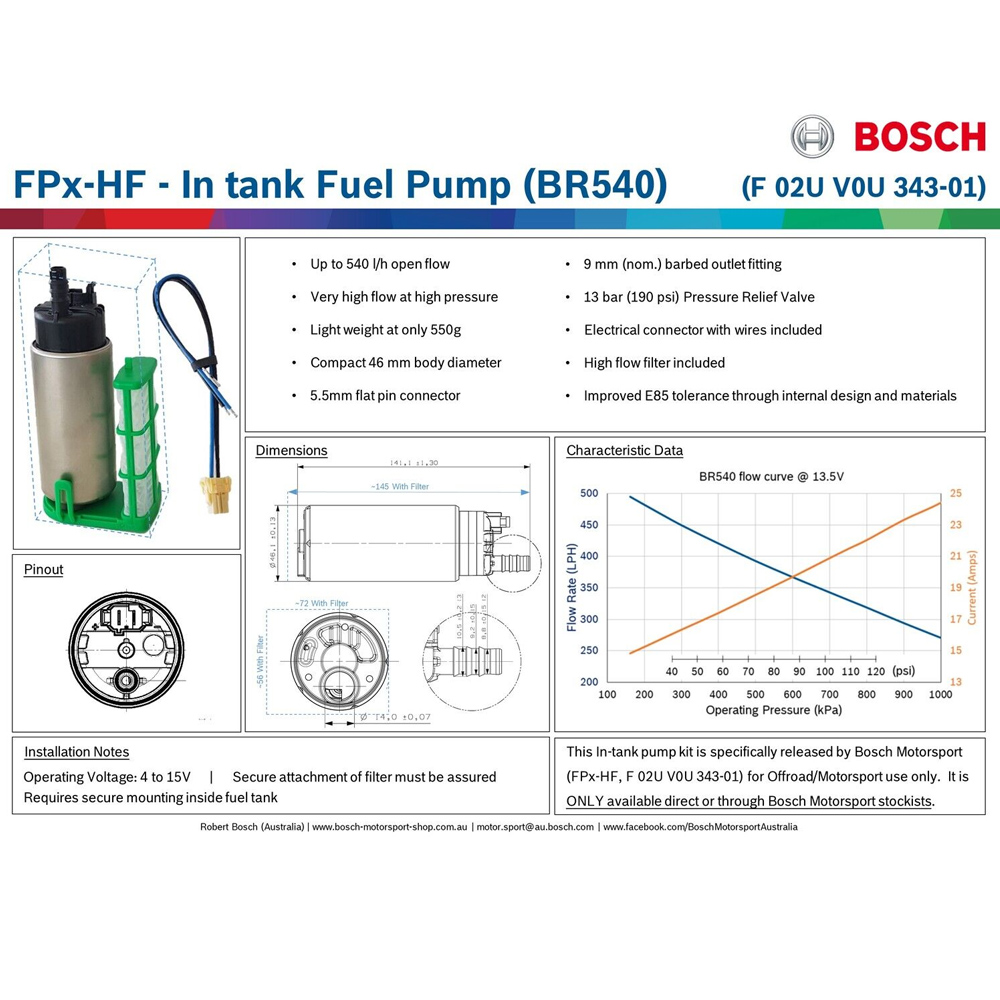

For more info about this fuel pump, visit the manufacturer’s specifications.
Additional information
| Weight | 0.75 kg |
|---|---|
| Dimensions | 22 × 7 × 7 cm |
