ASX,6 WAY,SKT,FLG,B KEY,BLUE

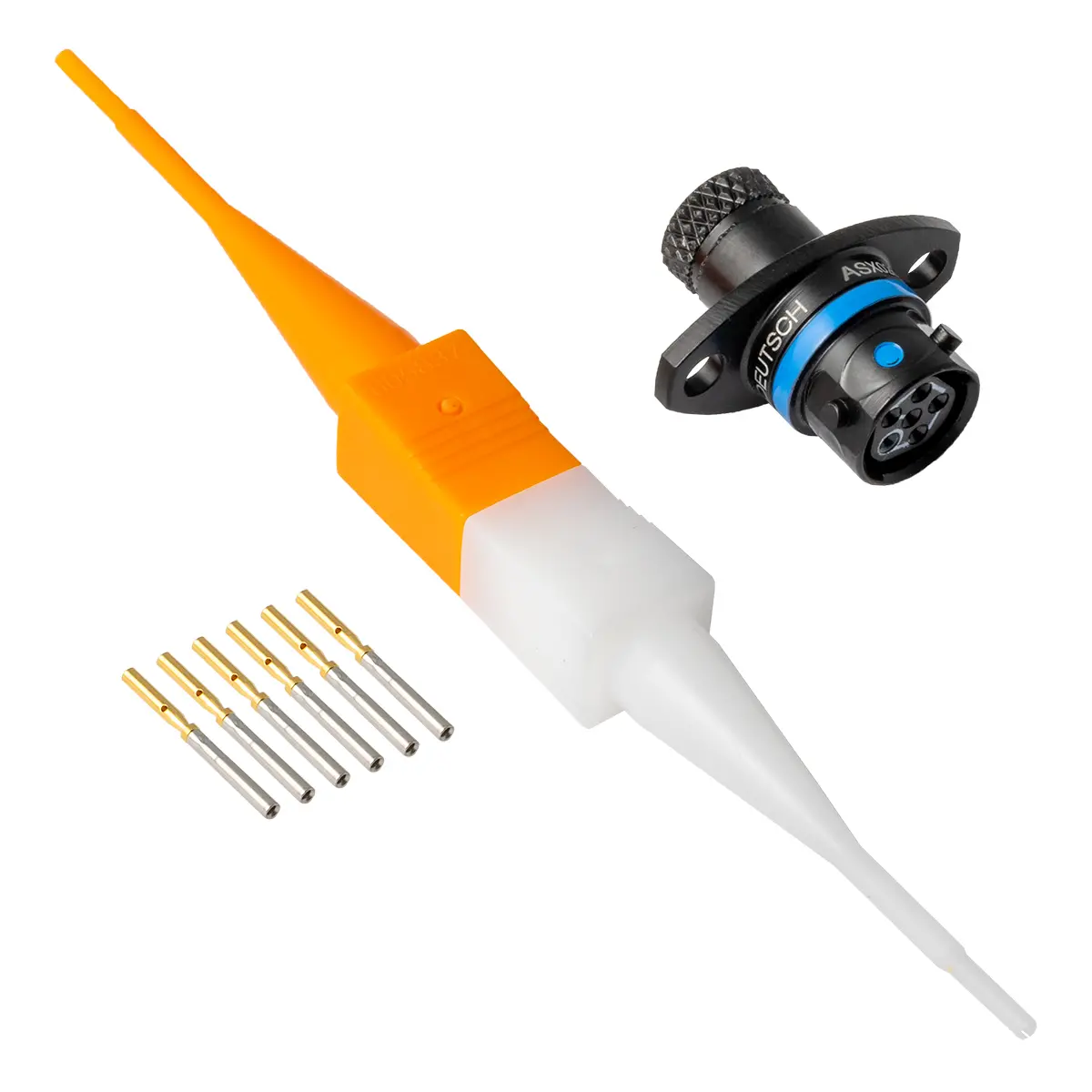

Deutsch Autosport ASX (Miniature) Series — 6-Way Flange Socket (Female)

The Deutsch Autosport ASX 6-Way Flange Socket (Female) — Blue Key (B) — SKU: ASX002-06SB-HE is a genuine MIL-spec-grade panel-mounted connector for 6-circuit sensor cluster, coil group, and actuator bundle separable joins in professional race cars, rally, hillclimb, and high-performance builds across Norway, Sweden, and Denmark. This is the socket half of the mated pair — Pin (Male) must be ordered separately to complete the join.

Shell and Circuit Count — ASX002, 6-Way

The ASX series is a miniaturised circular connector built to MIL-spec standards for space-constrained and weight-sensitive motorsport wiring applications. It retains the same gold-plated contacts, aluminium alloy shell, and positive push-pull locking as the standard AS series, in a smaller circular body suited to compact sub-harness builds. The ASX002 is the ASX002 — flange-mount miniature shell for panel and bulkhead installations. At 6 circuits, this connector is suited to 6-circuit sensor cluster, coil group, and actuator bundle separable joins. Common applications include 6-wire sensor clusters, dual coil-on-plug group sub-connectors, throttle body actuator bundles, and combined 6-channel signal and power sub-harness interfaces.

Blue Key (B) — Mis-Mate Protection

Blue B is the second key assignment, used when two parallel 6-circuit ASX flange bundles share the same separation point. Once Yellow A is allocated to the primary bundle, Blue B identifies the secondary — physically preventing cross-mating between the two pairs. Mis-mate protection is mechanical and holds regardless of time pressure or connector volume. Blue B and Yellow A are the standard two-key pairing used by harness builders across Norway, Sweden, and Denmark.

Flange Mount — Panel and Bulkhead Installation

The flange connector mounts through a panel cutout via its integral aluminium flange — fixing one half permanently to the chassis, firewall, or bulkhead. The mating cable-mounted half plugs directly into the fixed half, creating a precise, repeatable separable interface at the panel itself. This is the standard for primary chassis separation points, engine bay to cabin firewall joins, and fixed bulkhead interfaces. Flange connectors are the professional choice for motorsport workshops across Norway, Sweden, and Denmark.

Technical Specifications — ASX002-06SB-HE

• Series: Deutsch Autosport ASX
• Shell: ASX002
• Circuit count: 6-way
• Configuration: Flange (flange-mount (panel/bulkhead))
• Contact type: Socket (Female)
• Key colour: Blue (Key B)
• Shell material: Aluminium alloy, MIL-spec machined
• Contact plating: Gold over nickel
• Operating temperature: −65°C to +175°C
• Locking: Push-pull positive lock collar
• Contacts: Ordered separately — not included
• Mating half required: Pin (Male), same circuit count, shell, and key colour
