ASX,3 WAY,INLINE,SKT,A KEY,YELLOW

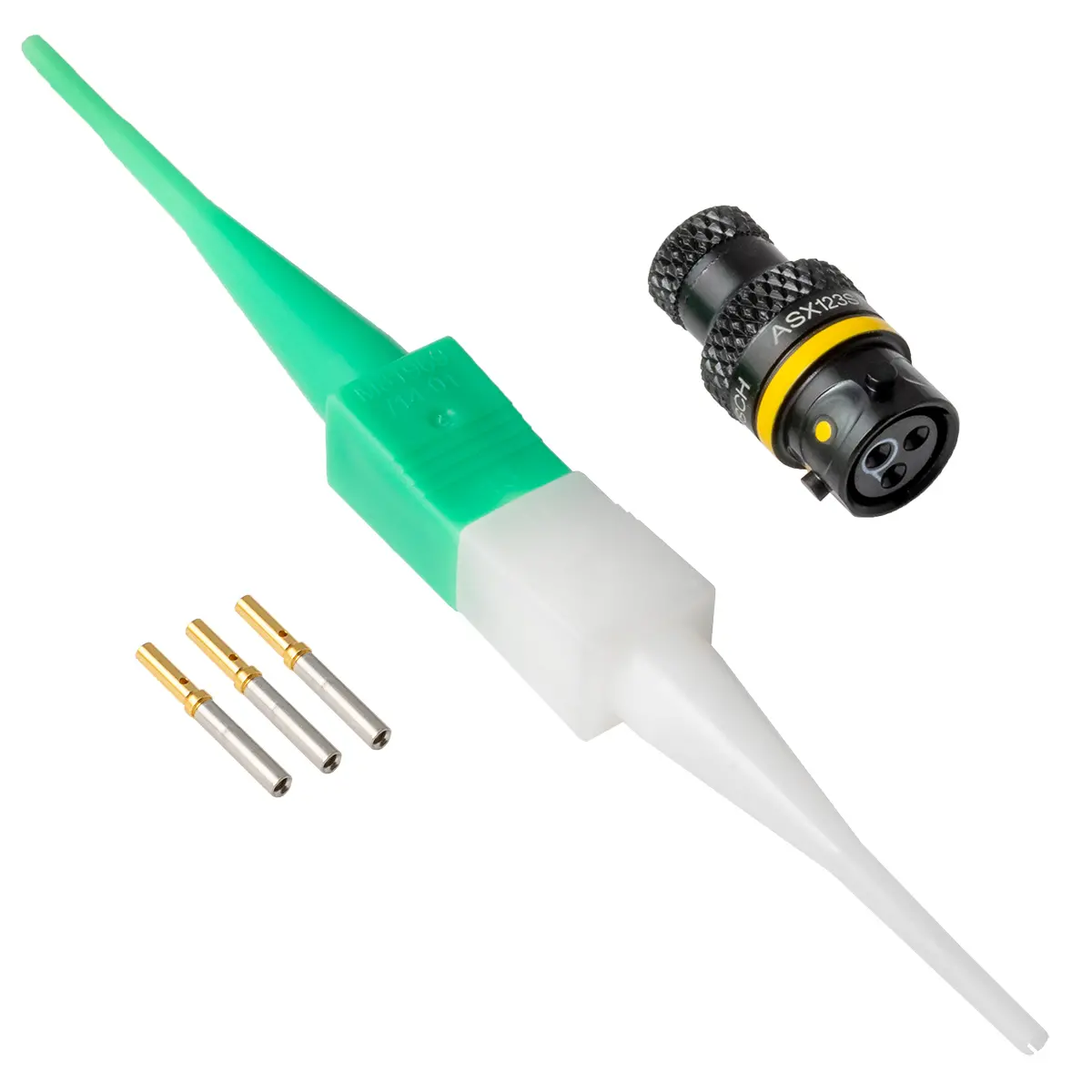

Deutsch Autosport ASX (Miniature) Series — 3-Way Inline Socket (Female)

The Deutsch Autosport ASX 3-Way Inline Socket (Female) — Yellow Key (A) — SKU: ASX102-03SA-HE is a genuine MIL-spec-grade cable-mounted connector for 3-circuit sensor, actuator, and switch sub-harness separable joins in professional race cars, rally, hillclimb, and high-performance builds across Norway, Sweden, and Denmark. This is the socket half of the mated pair — Pin (Male) must be ordered separately to complete the join.

Shell and Circuit Count — ASX102, 3-Way

The ASX series is a miniaturised circular connector built to MIL-spec standards for space-constrained and weight-sensitive motorsport wiring applications. It retains the same gold-plated contacts, aluminium alloy shell, and positive push-pull locking as the standard AS series, in a smaller circular body suited to compact sub-harness builds. The ASX102 is the ASX102 — compact inline miniature shell for cable-mounted harness separation points. At 3 circuits, this connector is suited to 3-circuit sensor, actuator, and switch sub-harness separable joins. Common applications include 3-wire sensor assemblies (MAP, TPS, CLT, IAT), individual coil-on-plug sub-connectors, 3-wire actuator feeds, and small auxiliary circuit groupings.

Yellow Key (A) — Mis-Mate Protection

Yellow A is the first key assignment in the Deutsch Autosport keying system. It marks the primary 3-circuit ASX inline bundle at a separation point — the one disconnected and reconnected most often during race preparation and servicing. Where only one 3-circuit pair exists at the split, Yellow A is always the correct choice. It ensures consistent harness identification across multiple builds and events in Norway, Sweden, and Denmark.

Inline Configuration — In-Harness Separable Join

The inline connector places both halves within the harness run — neither is fixed to a panel or bulkhead. Both halves are cable-mounted and the mated join floats within the loom, held by harness sleeve or tie-wrap points. This is the standard format for engine-to-chassis harness splits, removable subframe sub-harness joins, and any separable interface along the wire run. Inline connectors are used by motorsport wiring specialists across Norway, Sweden, and Denmark wherever a fixed panel location is not required.

Technical Specifications — ASX102-03SA-HE

• Series: Deutsch Autosport ASX
• Shell: ASX102
• Circuit count: 3-way
• Configuration: Inline (free-hanging inline)
• Contact type: Socket (Female)
• Key colour: Yellow (Key A)
• Shell material: Aluminium alloy, MIL-spec machined
• Contact plating: Gold over nickel
• Operating temperature: −65°C to +175°C
• Locking: Push-pull positive lock collar
• Contacts: Ordered separately — not included
• Mating half required: Pin (Male), same circuit count, shell, and key colour
