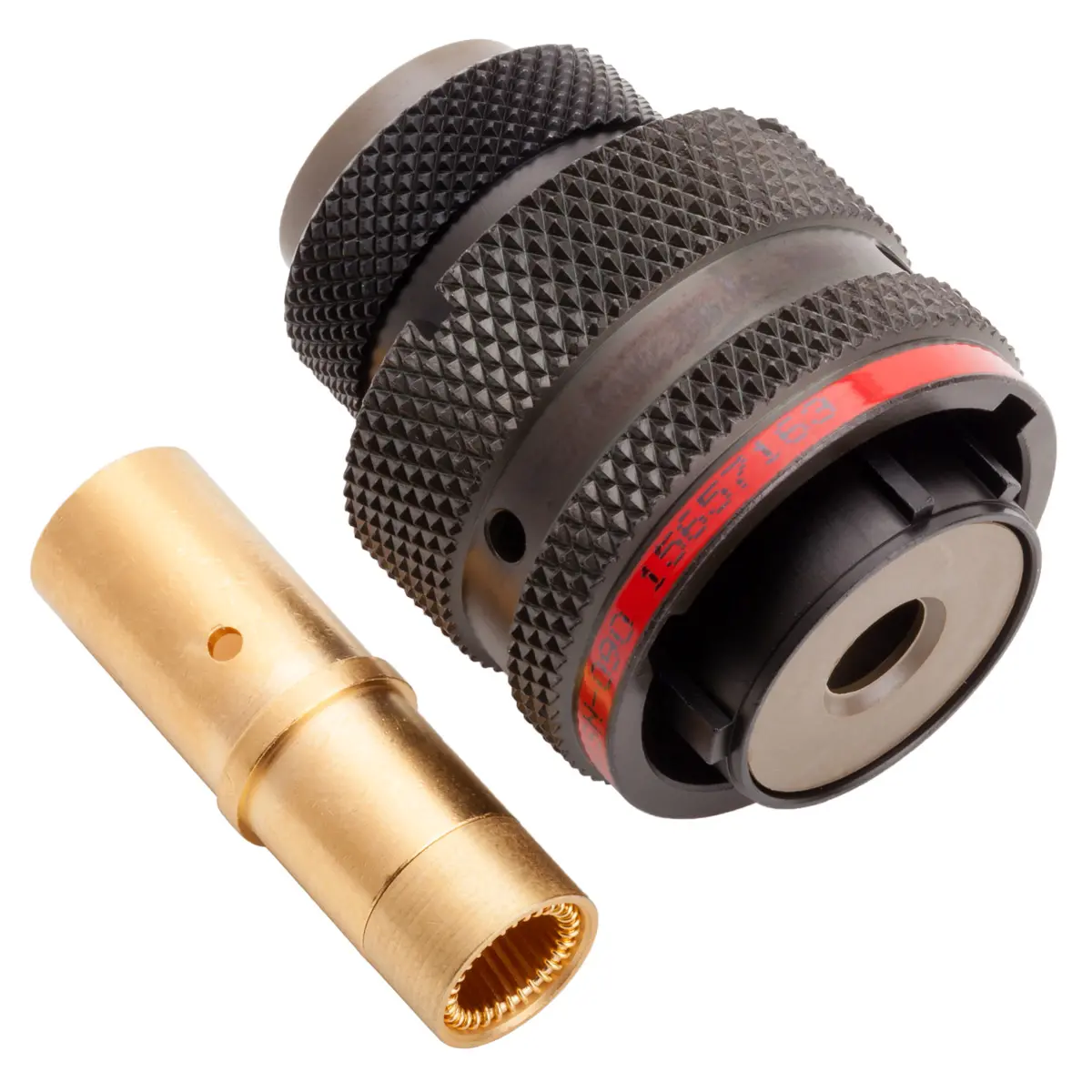

Deutsch ASHD Heavy-Duty — 1-Way Plug Pin (Male), 35mm² Cable
The Deutsch ASHD 1-Way Plug Pin (Male) — 35mm² — SKU: ASHD614-1SN-C35 is a heavy-duty single-circuit high-current connector for main power feeds, battery disconnects, and high-current ground termination points in professional race cars and high-performance vehicle builds across Norway, Sweden, and Denmark. This is the pin half — Socket (Female) must be ordered separately.
ASHD Series — High-Current Single-Circuit Architecture
The Deutsch ASHD series is built for single-circuit high-current applications where multi-way connectors are not appropriate. Rated for 35mm² large-gauge cable, it delivers a secure, vibration-resistant, weatherproof connection at main power separation points. Typical applications include alternator output joins, battery-to-PDM feeds, and high-current ground bus separation interfaces.
Red N — Non-Keyed Neutral Configuration
The ASHD uses a Red N (non-keyed) insert — it mates with any same-shell counterpart regardless of key designation. Since only one circuit is carried per connector body, directional mis-mate protection is not required. Red N provides maximum mating flexibility at the high-current separation point.
Plug Configuration — Free Cable-Mounted Plug
The ASHD plug is the free, cable-mounted half that disconnects from the fixed receptacle at the main power separation point. It provides the removable connector half for rapid, secure disconnection of the high-current circuit. Used by motorsport wiring specialists and race teams across Norway, Sweden, and Denmark for main power loom separation.
Technical Specifications — ASHD614-1SN-C35
- Series: Deutsch ASHD (Heavy-Duty High-Current)
- Circuit count: 1-way (single circuit)
- Configuration: Plug
- Contact type: Pin (Male)
- Cable rating: 35mm²
- Key: Red N (non-keyed / neutral)
- Mating half required: Socket (Female), same shell and cable size
