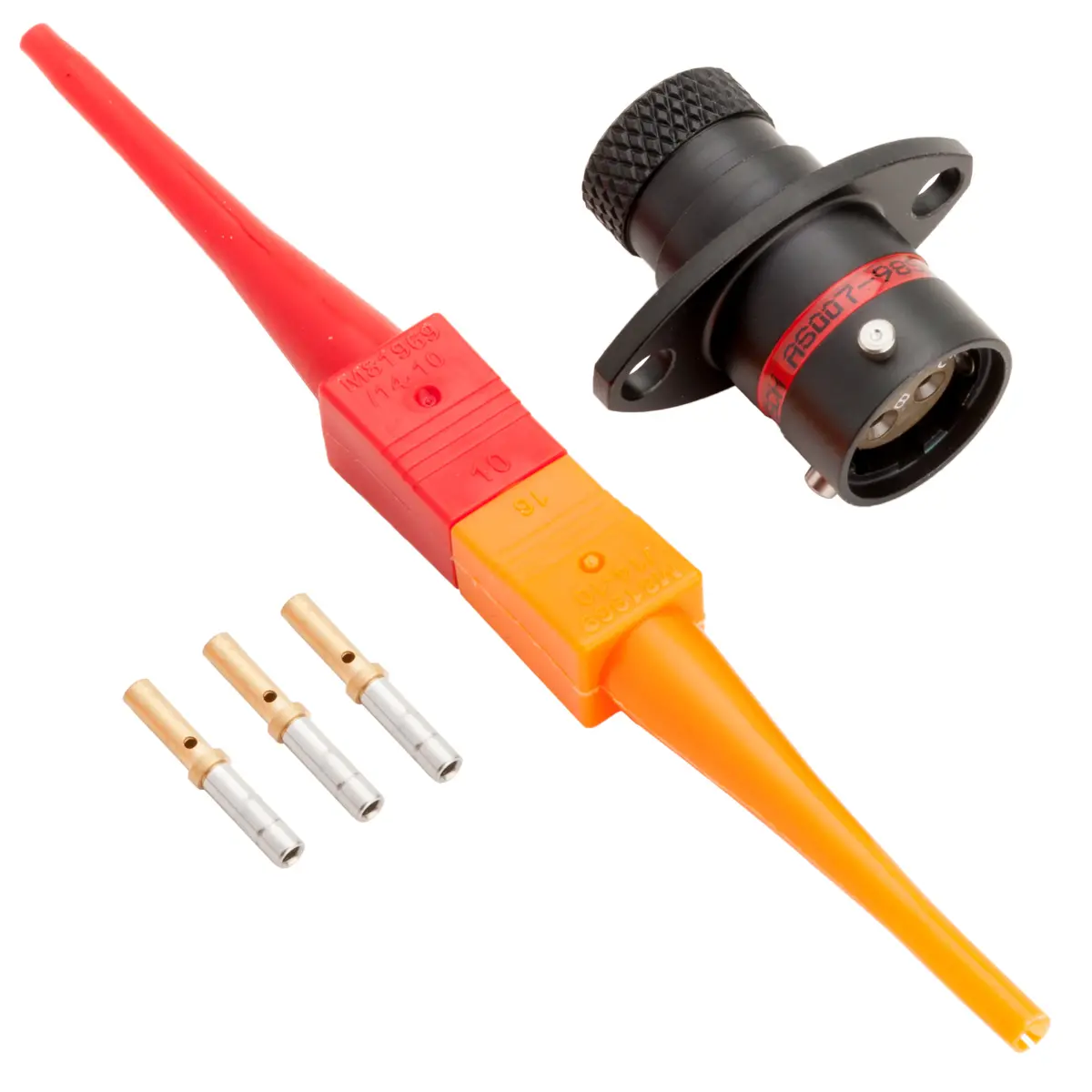

Deutsch Autosport AS 6-Way Flange — Socket (Female) — Red Key (N)
The Deutsch Autosport AS 6-Way Flange Socket (Female) Connector with Red (N) Keying Insert — SKU: AS007-35SN is a professional MIL-spec-grade Deutsch Autosport AS series connector for 6-circuit sensor cluster joins and compact ECU auxiliary interfaces in race cars and high-performance vehicles across Norway, Sweden, and Denmark. Configured as a panel-mounted flange connector that bolts permanently to a chassis panel, bulkhead, or firewall — the fixed, chassis-anchored half that the cable-side plug mates into.
Deutsch Autosport AS 6-Way — 6-circuit Circuit Configuration
The Deutsch Autosport AS series is the professional standard circular connector format for motorsport wiring — aluminium alloy shell, gold-plated contacts, positive push-pull locking, and full MIL-spec environmental sealing for race-condition reliability. The 6-circuit configuration is used for sensor cluster harness joins, ECU auxiliary sub-connectors, and compact separable points requiring 6 circuits in professional motorsport builds throughout Scandinavia. Compact 6-circuit shell — suited for sensor cluster sub-harnesses and ecu auxiliary circuit removable joins.
Socket (Female) — 6-Circuit Contact Array
This is the socket half of the 6-way AS flange pair. Six socket contacts receive six incoming pin contacts — the receptacle half completing the full 6-circuit array across this compact motorsport harness separable join. The corresponding pin half of the same circuit count and key colour completes the mated pair — both halves are required. AS contacts are ordered separately; select the correct contact part number for your wire gauge and current requirements.
Red Key (N) — Keying Position and Mis-Mate Prevention
Red N is the neutral (non-keyed) specification — the correct choice when only a single 6-circuit AS flange is used at this separation point and no adjacent same-size connector creates a mis-mate risk. An N-keyed half mates with any other N-keyed half of the same circuit count, keeping the connector specification simple and straightforward for single-pair 6-circuit AS applications. Red N is also commonly used on initial harness prototype builds before the final keying strategy is confirmed, on harnesses where each AS connector is a unique circuit count (eliminating any possibility of mis-mating by design), and on any motorsport harness build in Norway, Sweden, or Denmark where keyed mis-mate prevention between same-circuit-count connectors is not required at this particular separation point.
Flange Configuration — Panel-Mounted Fixed Connector Point
The AS flange connector mounts permanently to a chassis panel, bulkhead, or firewall using the integrated mounting flange holes — creating a fixed 6-circuit connector point anchored to the vehicle structure. Once bolted in position, the flange remains in place throughout the vehicle’s service life while the matching plug half is mated and unmated repeatedly for component installation, removal, and servicing without disturbing the chassis-side connection.
The 6-circuit AS flange is used for 6-circuit sensor cluster joins and compact ECU auxiliary interfaces across race cars and performance vehicles in Norway, Sweden, and Denmark. Flange connectors are the standard specification at firewall primary harness separation points, engine bay bulkhead connectors, chassis rail panel interfaces, and any harness separation point that aligns with a structural surface suitable for mounting. The fixed flange provides a permanent, precisely-located connector point that makes harness re-mating fast and repeatable at every race event service interval.
Technical Specifications
- Series: Deutsch Autosport AS
- Circuits: 6-way
- Configuration: Flange
- Contact type: Socket (Female)
- Key colour: Red (Key N)
- Shell material: Aluminium alloy
- Operating temperature: -65°C to +175°C
- Locking: Push-pull positive lock
- Typical application: Single-connector applications where no adjacent same-circuit-count connector creates a mis-mate risk
