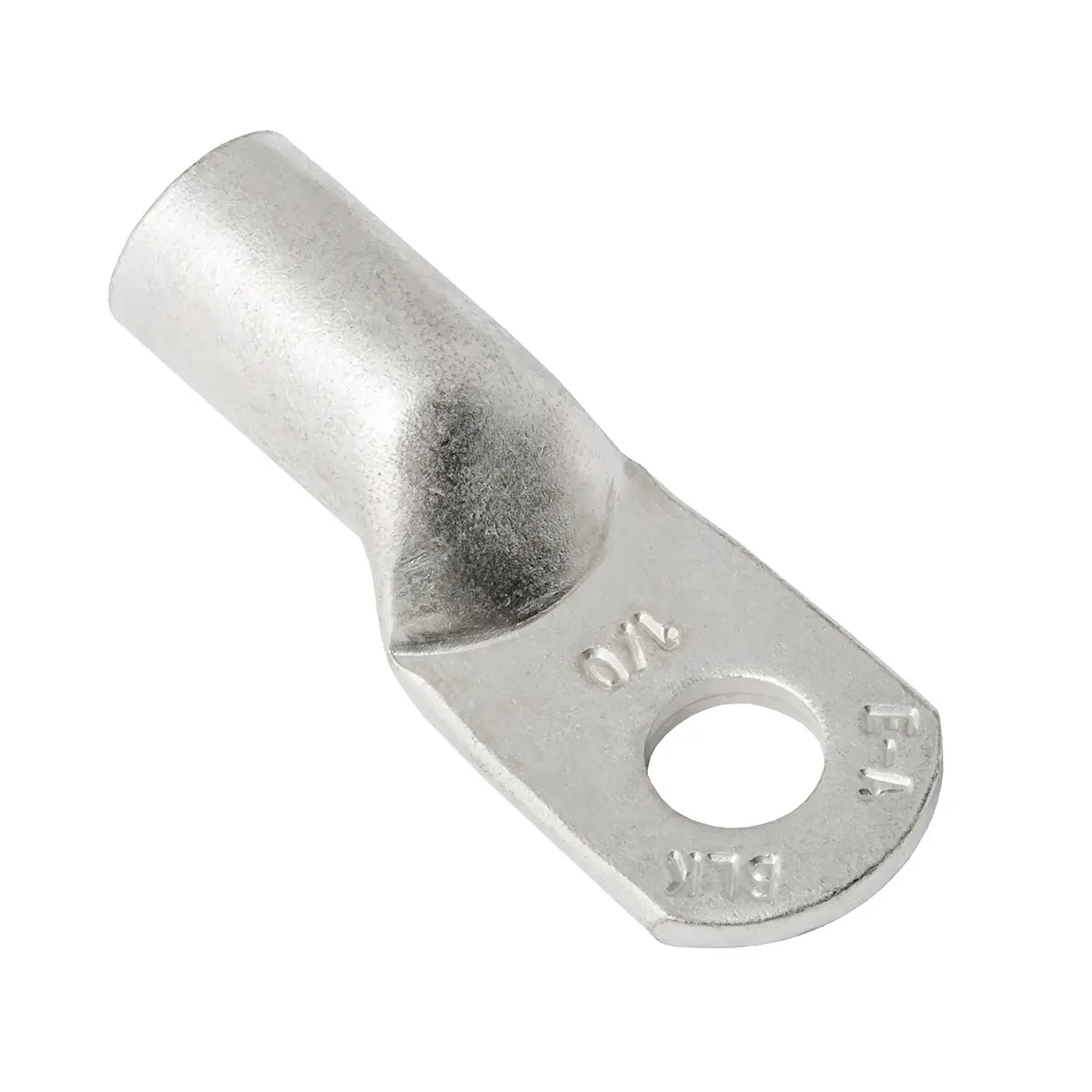

2 AWG, DURA-LUG, EYELET, 3/8 STUD

Description

Dura Lug, Extra Heavy Duty, Tinned Copper, 2 AWG, 3/8″ (M9) Stud, Eyelet
This extra-heavy-duty battery cable lug has a seamless construction and is perfect for automotive and industrial applications. It is designed for all types of
battery cables
and
Tefzel wire
. See below for heat-shrink tubing options.
Wire AWG: 2 AWG (stamped on the terminal)
Stud Size: 3/8″ (M9)
Material: Tinned Copper
UL/CUL Listed
Work-hardened Tang
Can be crimped or soldered
Made in USA
Crimp tool options:
Hex Crimp Tool:
18840
(use PINK die)
Technical Information:
Barrel O.D.: .480″ (12.192 mm)
Barrel I.D. (C): .385″ (9.779 mm)
Tang Width (W): .69″ (17.526 mm)
Tang Length (F): .86″ (21.844 mm)
Barrel Length (D): .6″ (15.24 mm)
Overall Length (E): 2.13″ (54.102 mm)
Tang Thickness (T): .121″ (3.073 mm)
Heat-shrink options:
CPA 3:1 Red:
CPA-100-3/4-RED
CPA 3:1 Black:
CPA-100-3/4-BK
SCL 2:1 Black:
SCL-3/4-0-STK
ATUM 3:1 Black:
ATUM-19/6-0-STK
ATUM 4:1 Black:
ATUM-24/6-0-STK
Please see the
Related Items
,
Crimp Tools
tabs, or
Documents
section for more information.
TERMINAL PLATING
Tinned Copper
STYLE
Extra Heavy Duty
SERIES
DURA-LUG
MANUFACTURER
STUD SIZE
3/8″ (M9)
WIRE SIZE / RANGE
2 AWG
BARREL TYPE
Tublar
