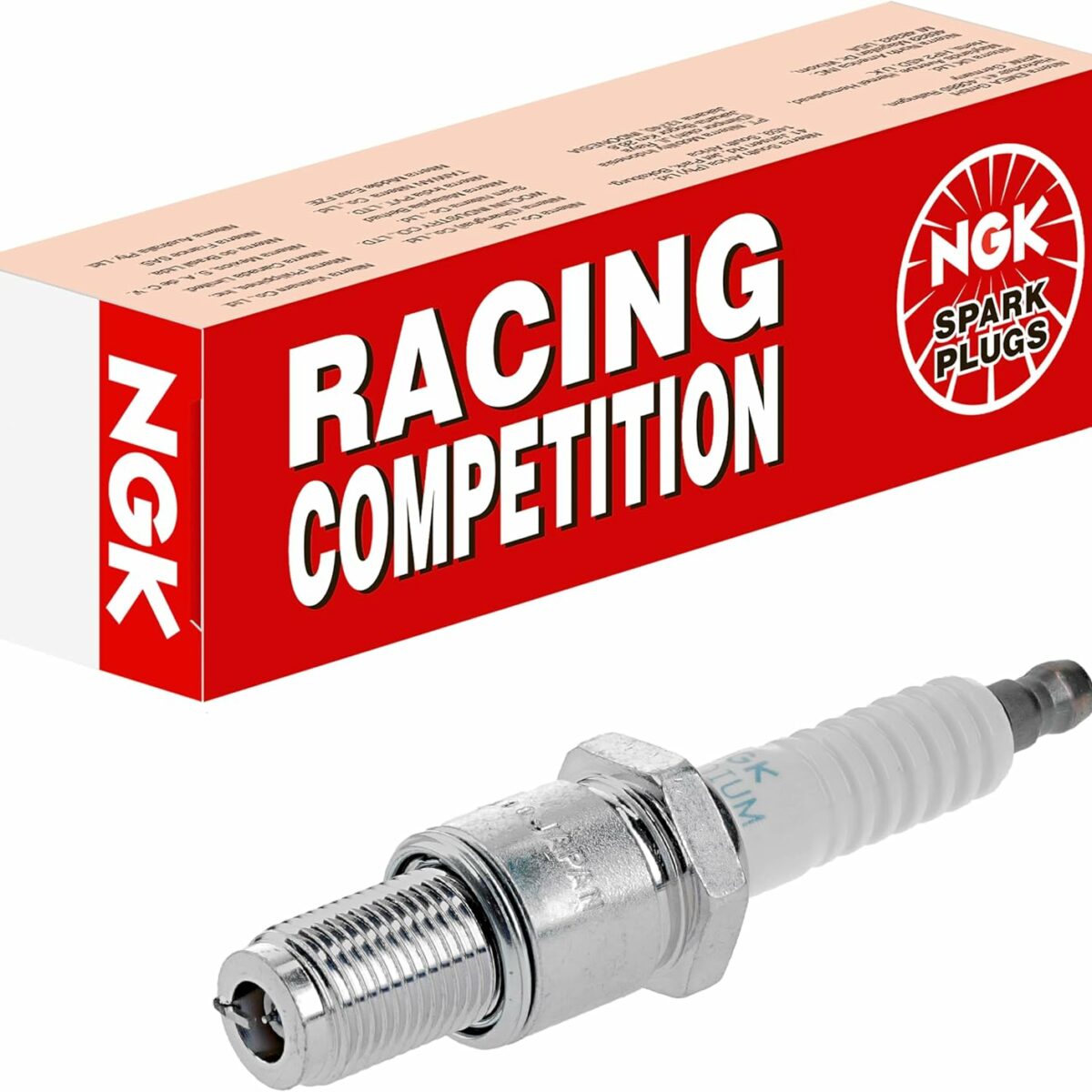

NGK BUR9EQP RX7

Surface gap plugs are nearly immune to pre-ignition, and usually require a special high energy ignition system. They can be susceptible to fouling, especially in colder applications, but may be necessary in high compression applications.

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs prevent flashover
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage


  Shell

  • Thread Diameter14mm
  • Thread Pitch1.25mm
  • Seat TypeGasket
  • Reach19mm (3/4″)
  • Hex Size13/16″ (21mm)
  • Terminal TypeSolid
  • Overall HeightISO
  • Gap.055″ (1.4mm)


    Center Electrode

  • MaterialPlatinum
  • TypeStandard
  • Size2.5mm
  • ProjectionNon-Projected


    Ground Electrode

  • MaterialNickel
  • TypeSlit Type
  • Quantity4


    Specifications

  • ResistorYes
  • Resistor Value5k Ohm
  • Heat Range9
  • Torque SpecsCast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.


    Part Information

  • BrandNGK/NTK
  • Warranty60 Days
  • Longevity50k Miles
